Description
Product Details
Details
Brand: SwampFox
Model/Series: American Warrior Bundle
Product Line: Arrowhead
Magnification: 1-10x
Tube Diameter: 30mm
Objective Lens Diameter: 24mm
Exit Pupil (mm): 8.0mm-2.3mm (1X-10X)
Eye Relief (in): 3.46-3.54" (1X-10X)
FOV @ 100 Yards (ft): 115.6-11.5' (1X-10X)
Click Value: 1/2 MOA or 0.1 MIL (reticle dependent)
Parallax Setting: 100 yds
Travel Per Rotation: 60 Clicks/ 30 MOA
Max Elevation Adjustment: 100 MOA
Max Windage Adjustment: 100 MOA
Lens Coating: Fully Multi-Coated/ Anti-fog/ Hydrophobic
Illumination: 12 Position Illumination Turret
Battery: Side-mounted CR2032 Battery
Reticle: BDC or MOA Glass Etched Illuminated
Magnification Required for Reticle Accuracy: 10x
Fast Focus Diopter: Yes, -2 to +2
Turret Style: Push/Pull Locking Turrets with Zero Reset
Length: 10.91"
Weight: 20.36 oz
Waterproof Rating: IPX7
Impact Resistance: 1,100 G Forces
Product Line: Liberty II
MOA Adjustment: Dial
Dot Size: 3 MOA
Magnification: 1x
Lens Size: 24mm
Illumination Settings: 10
Brightness Adjustments: Up/Down digital buttons
Shockproof G Forces: 1,500 G Force
Waterproof: IPX7
Battery Type: CR1632
Max Battery Life: 50,000 hours
Dimensions: 1.86”(length) x 1.20”(width) x 1.17”(height)
Weight: 1.52 ounces
Lens Tinting: Multi-Coated Silver – Green Dot
Lens Coatings: Fully Multi-Coated/ Anti-fog/ Hydrophobic
Parallax: Parallax free @ 33 yards
Eye Relief: Unlimited
Mount Type: Universal RMR footprint
Chassis: 7075-T6 Hard Anodizing
Windage/Elevation Movement Range (MOA): 45 MOA/ Total 90 MOA Range
Features
TWO OPTICS, ONE RIFLE

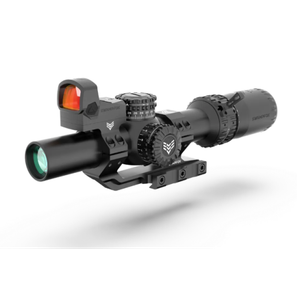

The American Warrior Bundle puts two sighting solutions on one rifle. The Arrowhead 1-10 LPVO covers close quarters out to distance, while the Liberty II red dot rides directly above it for an instant 1x sight picture. Snap between magnified precision and a fast 1x dot without breaking position or swapping optics.
BUILT TO RUN TOGETHER
This isn’t a parts-bin pairing. The Freedom Mount Pro’s integrated 12 o’clock RMR mount is purpose built to carry the Liberty II at the perfect height above your Arrowhead’s elevation turret. LPVO, red dot, mount, and all the mounting hardware ship in one package. No guessing on spacers to get your dot to sit at the perfect height. One package purpose built to run together. Mount it, zero it, run it.
BUILT TO RUN TOGETHER
This isn’t a parts-bin pairing. The Freedom Mount Pro’s integrated 12 o’clock RMR mount is purpose built to carry the Liberty II at the perfect height above your Arrowhead’s elevation turret. LPVO, red dot, mount, and all the mounting hardware ship in one package. No guessing on spacers to get your dot to sit at the perfect height. One package purpose built to run together. Mount it, zero it, run it.
FLAGSHIP LPVO GLASS
Arrowhead is our flagship LPVO, and the 1-10x24 is its most versatile reach. Advanced optical engineering delivers a wide field of view and a bright sight picture, with anti-reflection, anti-fog, anti-scratch, and hydrophobic lens coatings for a tough, all-conditions build. Second focal plane construction keeps the reticle a consistent size across the magnification range, giving you a familiar sight picture and faster follow-up shots at any distance.
LOCKABLE TURRETS, ZERO RESET
Push/pull locking turrets allow fast, tool-free adjustments and lock down against unintentional movement, at 0.5 MOA or 0.1 MIL per click. Set your zero, pull the locking bolt, reset to your new zero, and you’re back to true. Dual LED emitters drive daylight-bright reticle illumination across 12 settings with intermittent off positions, including two low-light settings compatible with night vision devices.
LIBERTY II GREEN DOT
Built for everything from home defense to the range, the Liberty II runs a 24mm window and modern body on a universal RMR footprint, which is exactly what lets it sit clean at 12 o’clock on the Freedom Pro Mount. Ten manual illumination settings keep the 3 MOA dot sharp in any light. Swampfox Shake ’N Wake powers the Liberty II emitter down after 225 seconds of inactivity, then wakes the dot to its last setting the moment it senses motion. Always ready, always conserving.
PURPOSE BUILT CANTILEVER MOUNT
A one-piece 30mm cantilever machined from 6061-T6 aluminum and set at a 1.5" center height for AR-pattern rifles. A purpose-built RMR top ring carries both optics in hard alignment, keeping you ready for anything in one sleek, robust package.
