Description
Details
Brand: Trijicon

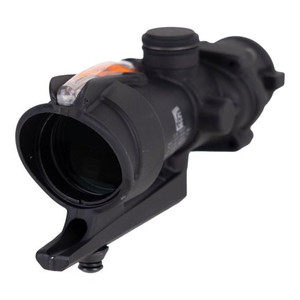

Model/Series: Acog 4x32 Bac Riflescope -.223/5.56 Bdc Red Donut Reticle
Length x Width x Height: 5.93 in x 2 in x 2.3 in
Weight: 10.9 oz. (309.01g)
Magnification: 4x
Objective Size: 32mm
Reticle Pattern: Donut
Day Reticle Color: Red
Night Reticle Color: Red
Bullet Drop Compensating (BDC): Yes
Caliber: .223 / 5.56
Bindon Aiming Concept™ (BAC): Yes
Illumination Source: Fiber Optics & Tritium
Power Source: Fiber Optics & Tritium
Adjustment: 2 clicks per in. @100 yards
Eye Relief: 1.5 in. (38.1mm)
Exit Pupil: 0.32 in. (8.13mm)
Field of View (degrees): 7°
Field of View (feet): 36.8 ft. @ 100 yds. (12.27m @ 100m)
Mount: M16 / AR15 Carry Handle Base
Housing Material: Forged Aluminum
Finish: Matte Black
Features
ACOG 4x32 Scopes with Red Dual Illumination & BAC—M16 / AR15. Features Dual Illumination (Fiber Optic provides daylight illumination and tritium illuminates reticle at night). The reticle ranges out to 800 meters for 5.56(.223 cal).
ALWAYS ON, ALWAYS READY - Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.
TAKE CONTROL - Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.
RUGGED, RELIABLE HOUSING DESIGN - Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
SHOCK-RESISTANT - Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
EXACT TARGET DISTANCES & HOLDS - Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
“BOTH EYES OPEN” DESIGN - “Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.
